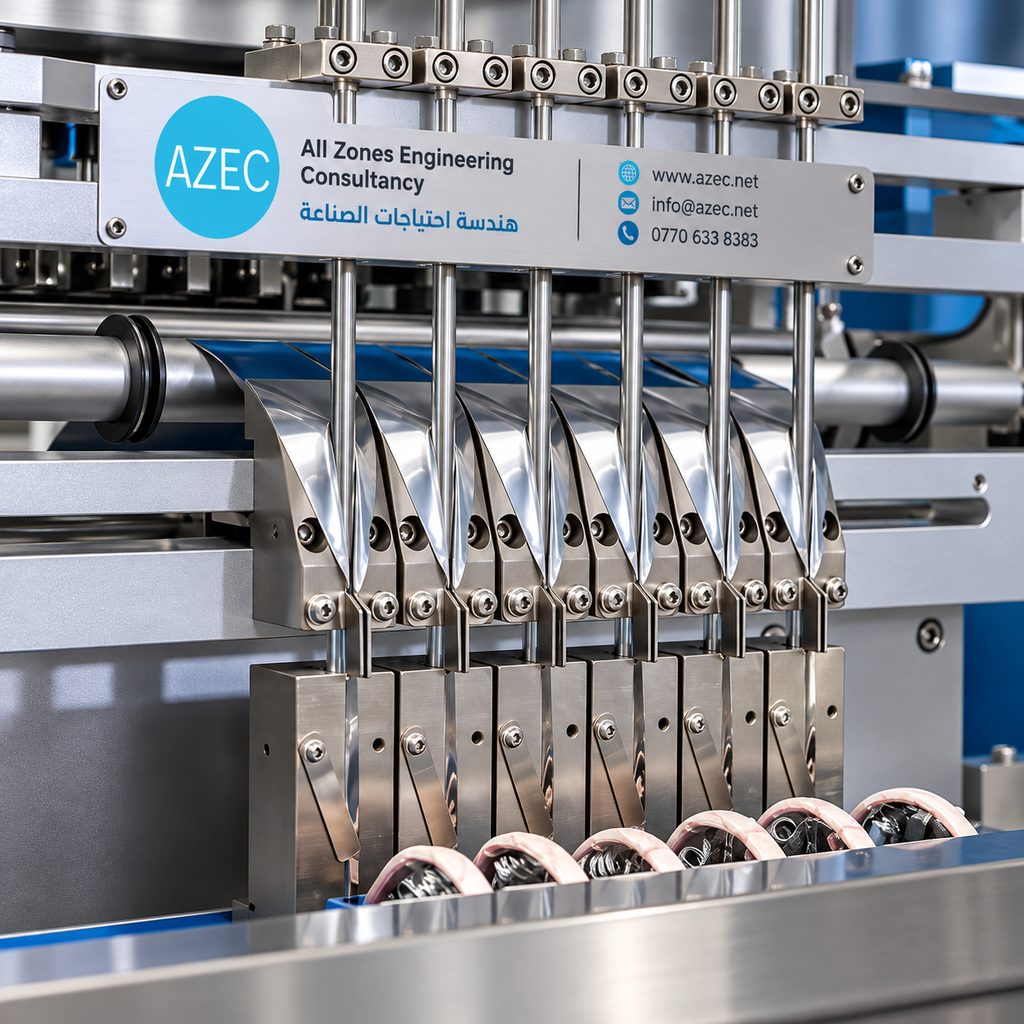

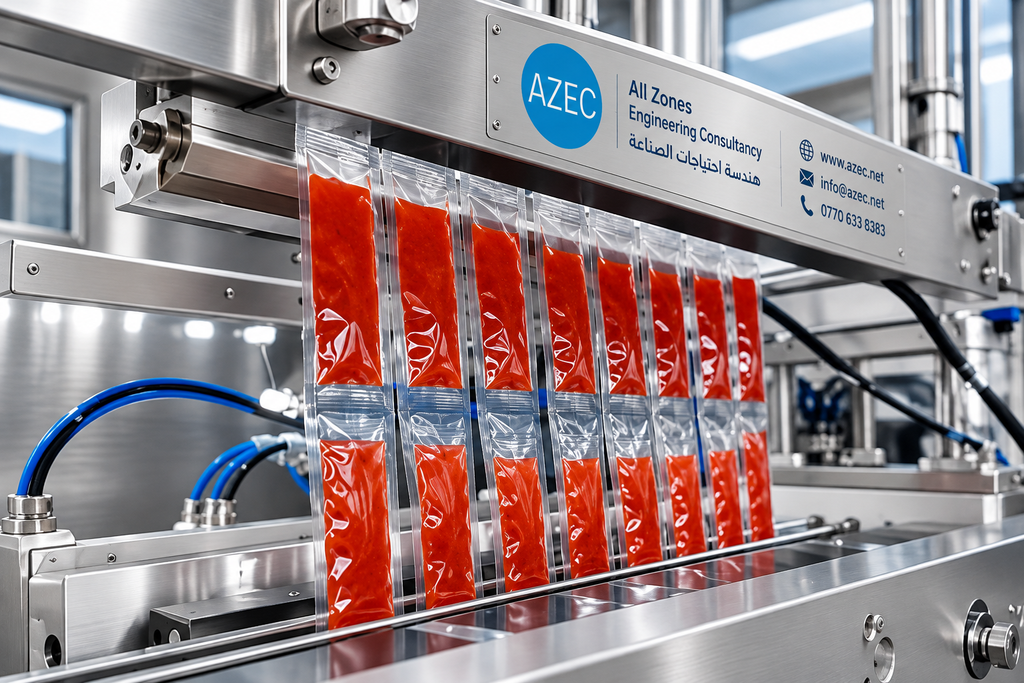

Automatic multi-lane liquid sachet packaging machine

Main Specifications

• Machine Type: Automatic multi-lane liquid sachet packaging machine
• Application: Tomato sauce, ketchup and suitable free-flowing liquids
• Number of Lanes: 4 lanes or customized
• Sachet Fill Weight: 5–15 g tomato sauce (specified application)

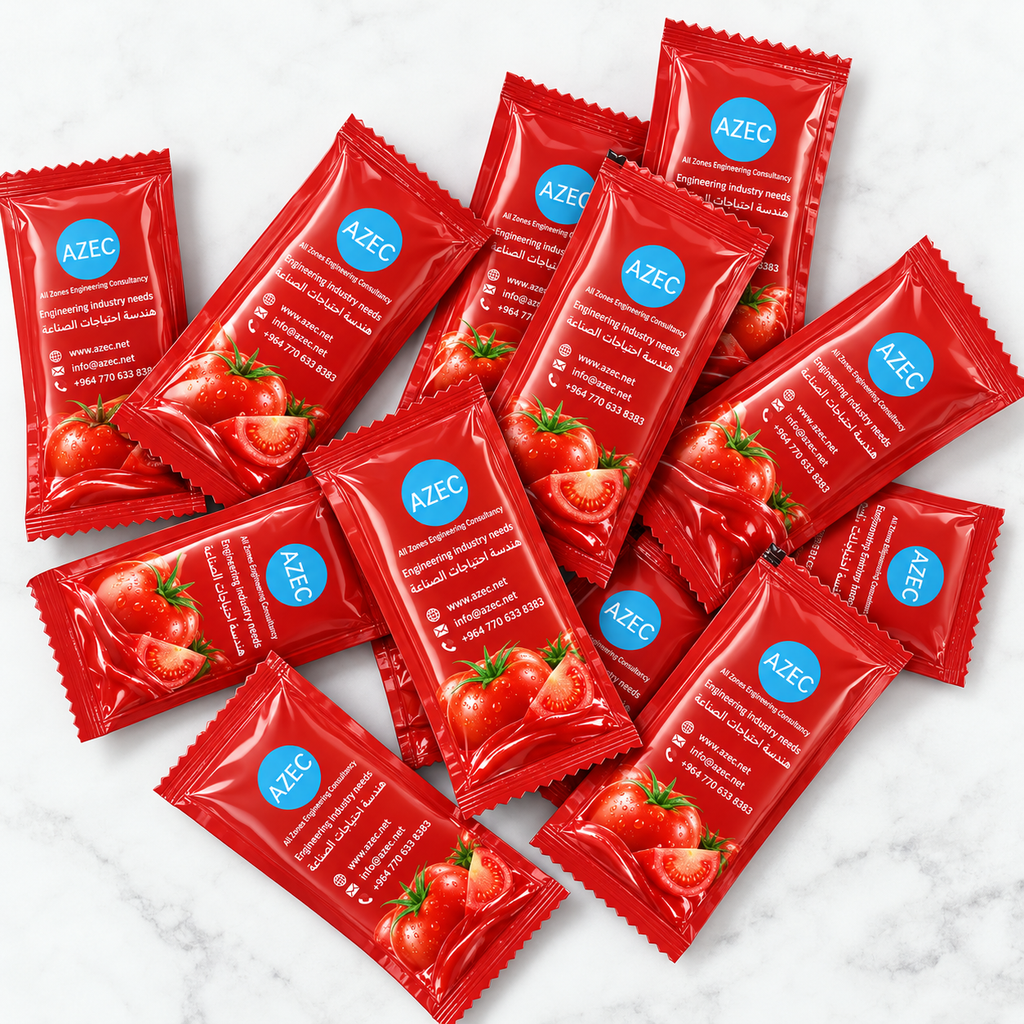

• Packaging Style: Four-side sealed sachets
• Speed per Lane: 30–40 sachets/minute/lane; product-dependent
• Sachet Length: 90–150 mm
• Sachet Width: 30–50 mm
• Maximum Film Width: 480 mm; usable width varies by format
• Maximum Film Width: 480 mm; usable width varies by format

Automation & Features

• Filling Technology: Peristaltic pump dosing and filling
• Control Interface: PLC control with HMI touchscreen
• Date Coding: Integrated multi-lane ribbon date printer
• Discharge Conveyor: Output conveyor included
• Frame Material: SUS304 stainless steel frame
• Product-Contact Material: SUS316 stainless steel
• Sealing Mechanism: Mechanically driven vertical and horizontal sealing
• Cutting System: Pneumatic cutting; cut-off and point-cut functions described
• Film Transport: Rubber and stainless-steel traction rollers
• Electrical Supply: AC 380 V, three-phase, 50 Hz
• Rated Power: 4.8 kW (as specified)
• Compressed-Air Requirement: 6.0 kg pressure as stated; minimum 0.6 m³/min air supply
• Machine Dimensions: 1,350 × 1,280 × 2,600 mm (L × W × H)
• Gross Weight: 320 kg (document-listed gross weight)
• Equipment Condition: New
• Country of Origin: China
• Service Support: Installation, commissioning and operator training available on request
